Products · Configured for your application
Four product groups—pneumatic industrial manipulators, custom tooling, vacuum lifters and jib cranes—cover pick-and-place, loading and unloading, transfer and assembly assistance. Equipment structure, load configuration and end tooling are customized for the workpiece and workstation.
The manipulator, tooling and pneumatic circuit are designed together. Products can be combined at one workstation, for example a pneumatic industrial manipulator with vacuum tooling, or a jib crane with lifting equipment.

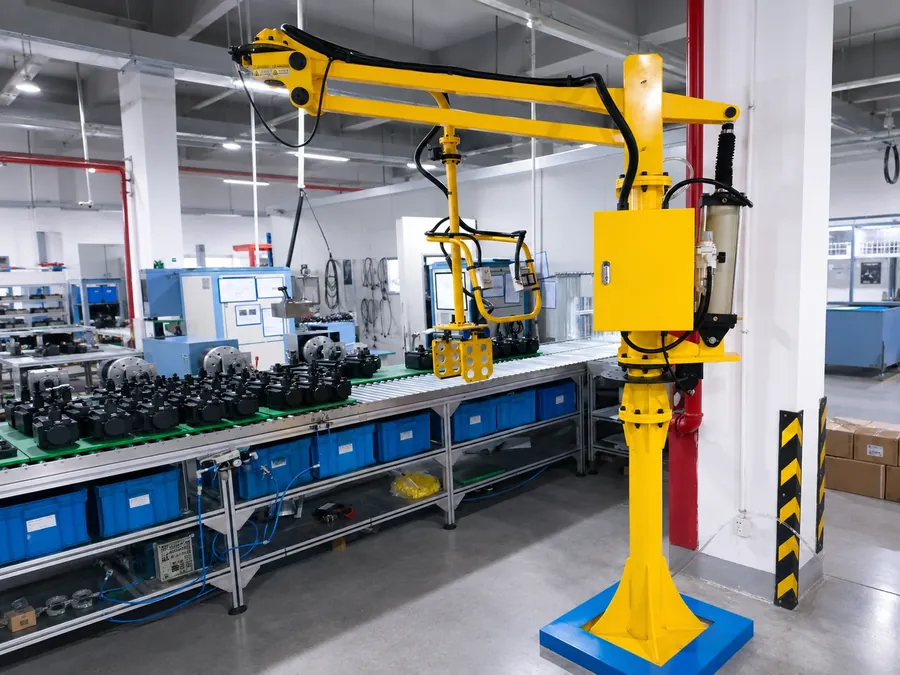

Pneumatic Industrial ManipulatorsA pneumatic industrial manipulator assists with supporting the workpiece weight and works with suitable tooling for pick-and-place, lifting and transfer. Turning mechanisms and several mounting arrangements are available.
View product

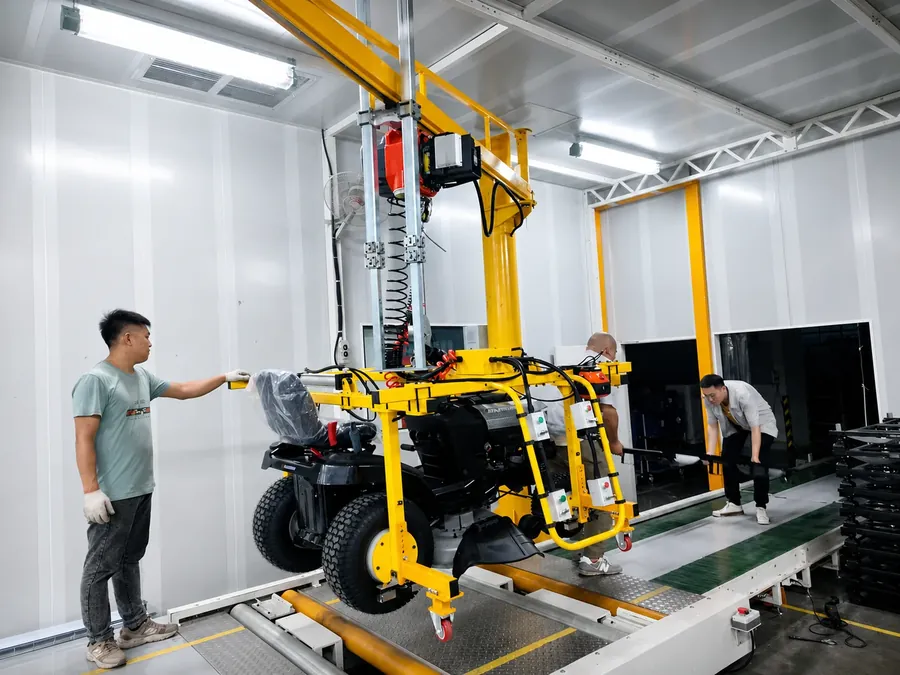

Custom toolingEnd tooling is designed around the workpiece shape, load-bearing areas and handling motions. Vacuum gripping, jaws, internal-expansion gripping, external clamping and turning structures are available.
View product
Vacuum handlingVacuum tooling picks and places cartons, panels and sheet-metal parts with suitable gripping surfaces. It can be paired with a pneumatic industrial manipulator or lifting equipment for transfer.
View product
Jib cranesA jib crane works with a hoist or lifting device to raise, lower and transfer workpieces over short distances within a fixed area. Column-mounted, wall-mounted and articulating structures are available.
View productThere is no fixed model table. All parameters below are determined by the workpiece weight, shape, pick-and-place positions and available space. Column, mobile, overhead or rail mounting can be selected.
Every unit is customized for the customer's workpiece and workstation. Open a case to see the workpiece, equipment configuration and handling motions.
Metal workpiece turningOn-site videoLarge Metal Workpiece Handling and Turning ApplicationA pneumatic industrial manipulator with custom clamping and turning tooling carries the lifting load of large metal workpieces and turns and positions them while maintaining the grip. One operator guides pick-and-place and orientation changes.

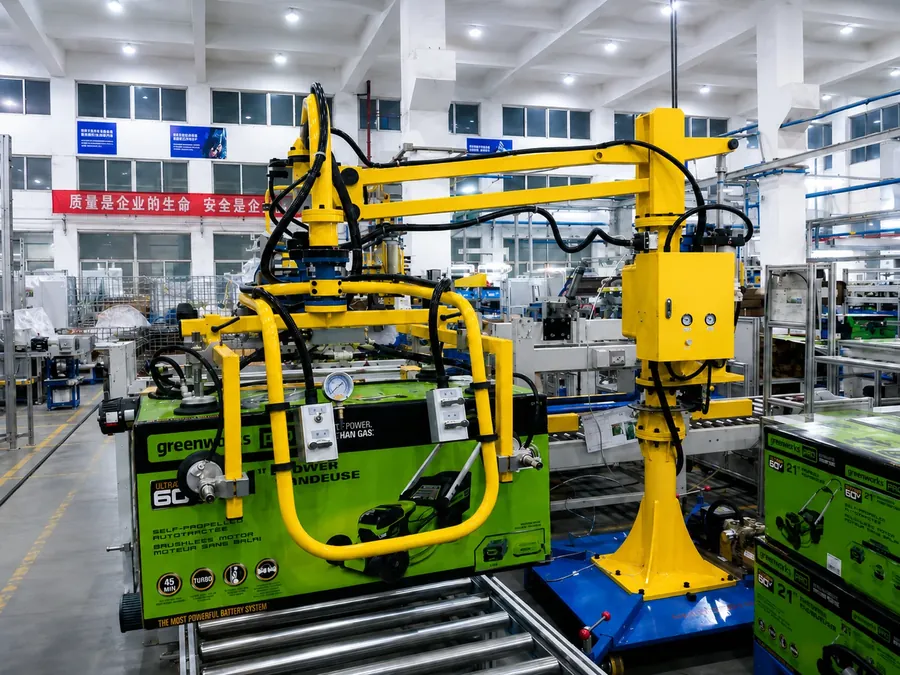

Carton stackingOn-site videoCarton Vacuum Handling and Stacking ApplicationA pneumatic industrial manipulator with vacuum tooling picks up, lifts, transfers and stacks packaged cartons. One operator guides the carton position using the operating handles, reducing repeated manual carrying and lifting.
Large-panel turningOn-site videoLarge Panel Vacuum Handling and Turning ApplicationA pneumatic industrial manipulator with vacuum turning tooling for panels uses multiple suction points to lift, turn through 90° and transfer large panels. One operator guides the change between horizontal and vertical orientations.
Automotive seat handlingAutomotive Seat Assembly and Transfer ApplicationA mobile-base pneumatic industrial manipulator with dedicated seat tooling assists with gripping, lifting, horizontal transfer and assembly alignment of seat assemblies. It reduces manual carrying and support at seat-assembly and final-assembly transfer stations.
Motor stator handlingMotor Stator Handling and Transfer Between WorkstationsAn overhead-mounted pneumatic industrial manipulator with internal-expansion tooling picks stators through their bore and assists with lifting, horizontal movement and assembly positioning. It reduces repetitive manual support while leaving floor space available at fixed workstations.
Hot casting handlingThermally Insulated Transfer of Hot Iron CastingsAn overhead-mounted pneumatic industrial manipulator with custom thermally insulated tooling grips, lifts and transfers castings weighing approximately 65 kg at approximately 250℃ between workstations, reducing direct manual support of hot workpieces.
Automotive interior handlingAutomotive Headliner Turning and Assembly ApplicationA column-mounted pneumatic industrial manipulator with large-area vacuum tooling supports automotive headliners at multiple suction points for lifting, horizontal movement, turning and assembly alignment, reducing the burden of manually supporting large parts.
Battery enclosure handlingAutomotive Cover Panel and Battery Enclosure Welding Handling ApplicationA column-mounted pneumatic industrial manipulator with custom welding-handling tooling assists with gripping, transferring and positioning automotive cover panels and battery enclosure components, connecting loading and unloading operations around the welding fixture.
Ring turningOn-site videoRing Workpiece Handling and Turning ApplicationA pneumatic industrial manipulator with dedicated ring tooling lifts, transfers and turns ring-shaped workpieces while maintaining the grip. One operator guides orientation and position, reducing direct manual support and changes of hand position.
Work roll handlingWork Roll Handling for Grinder Loading and UnloadingAn overhead-mounted pneumatic industrial manipulator with adjustable tooling assists with gripping, lifting and loading or unloading work rolls at grinding equipment, reducing floor occupancy. The operator guides the roll toward the fixture and adjusts its placement position.
Large-box handlingOn-site videoMobile Vacuum Handling of Large Packaging BoxesA mobile-base pneumatic industrial manipulator with custom vacuum tooling using side and top suction cups assists with pickup, lifting, direction changes and placement of large packaging boxes. The operator guides box transfer, reducing manual carrying and lifting of bulky packages.
Workpiece turningOn-site videoDisc and Flange Turning, Loading and Unloading ApplicationA pneumatic industrial manipulator with custom clamping and turning tooling picks disc- and flange-shaped metal workpieces from inside equipment, withdraws, turns and places them, connecting loading and unloading with orientation changes between processes.
Motor stator handlingMobile Motor Stator Handling Across Multiple WorkstationsA mobile-base pneumatic industrial manipulator with custom internal-expansion tooling assists with stator gripping, lifting and placement at defined positions. The equipment changes operating locations while unloaded, allowing several assembly stations to share it at different times.
Carton vacuum handlingCarton Vacuum Handling ApplicationA mobile-base pneumatic industrial manipulator with vacuum tooling picks up, lifts, transfers and places cartons, reducing repetitive manual carrying at packaging lines and box-transfer stations. The equipment can be positioned for the operating location.
Power supply packing and handlingPower Supply Packing and Handling ApplicationA mobile-base pneumatic industrial manipulator with custom tooling and a dedicated cart assists with gripping, lifting and packaging transfer of power supply products. It reduces repetitive carrying and allows different packaging areas to share the equipment at different times.Share the workpiece name, weight per workpiece, dimensions and pick-and-place motions, and an engineer will recommend a manipulator arrangement, working range and end tooling. Drawings and site photographs can be sent by email or WeChat.
